Xgimi Titan review

The Titan is a clear sign of how ambitious Xgimi is now getting with its projection range, despite the company still being a relative newcomer.

It combines the brand’s established taste for innovation and pushing projector boundaries with features clearly aimed at serious home cinema fans – a combination neatly summed up by Xgimi itself, variously describing the Titan as "Commercial Grade" and capable of delivering “true home theatre in any living room”.

Headline features such as a 5000-Lumen 4K laser optical system, unusually large 0.78 DLP imaging device and proprietary brightness-enhancing lens are certainly promising, but can the Titan really live up to the hype?

Price

The Xgimi Titan costs £3499 in the UK and $3999 in the US at the time of writing. That’s certainly not shockingly expensive for a projector apparently targeted at serious home cinema enthusiasts that boasts, as we’ll see, a pretty extreme set of features and specifications. But it is quite expensive by Xgimi standards, raising a high level of expectation for its performance given how well some more affordable Xgimi projectors have performed in recent years.

In Australia, meanwhile, the Titan costs an even more serious AU$9999.

Rivals in the same price ballpark include the excellent recently reviewed AWOL Vision Aetherion Max UST projector, and the What Hi-Fi? Award-winning, dedicated home theatre Epson EH-LS9000 model.

Design

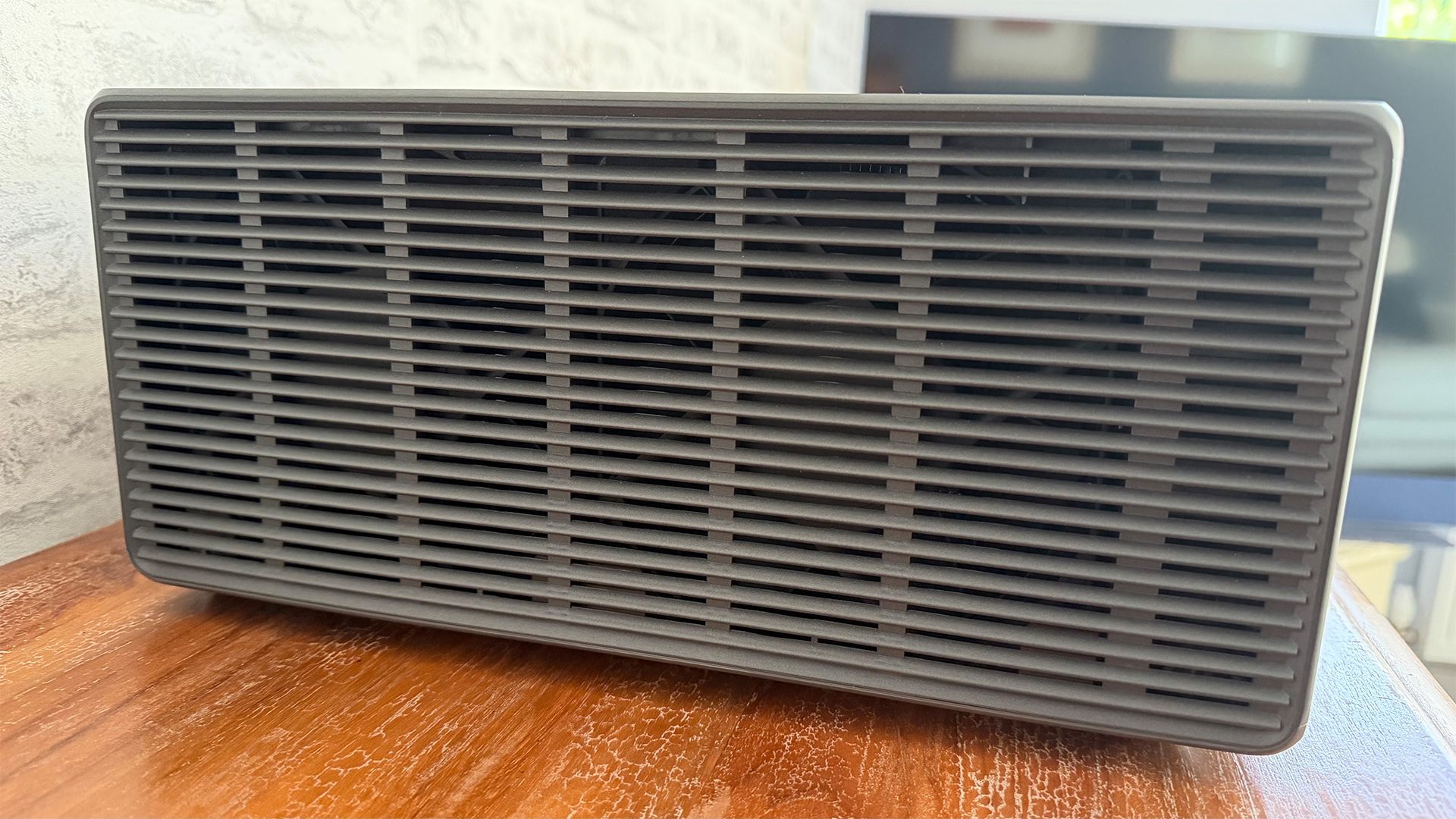

The Titan is a robustly built and striking-looking projector. Its basic rectangular shape isn’t particularly out there, but it’s reasonably compact for such a highly specified model; boasts an unusual but effective mixture of a slightly rubbery top edge, smooth plastic grilled sides and front felt finishes; and the lens features a striking red highlight running around its outer edge.

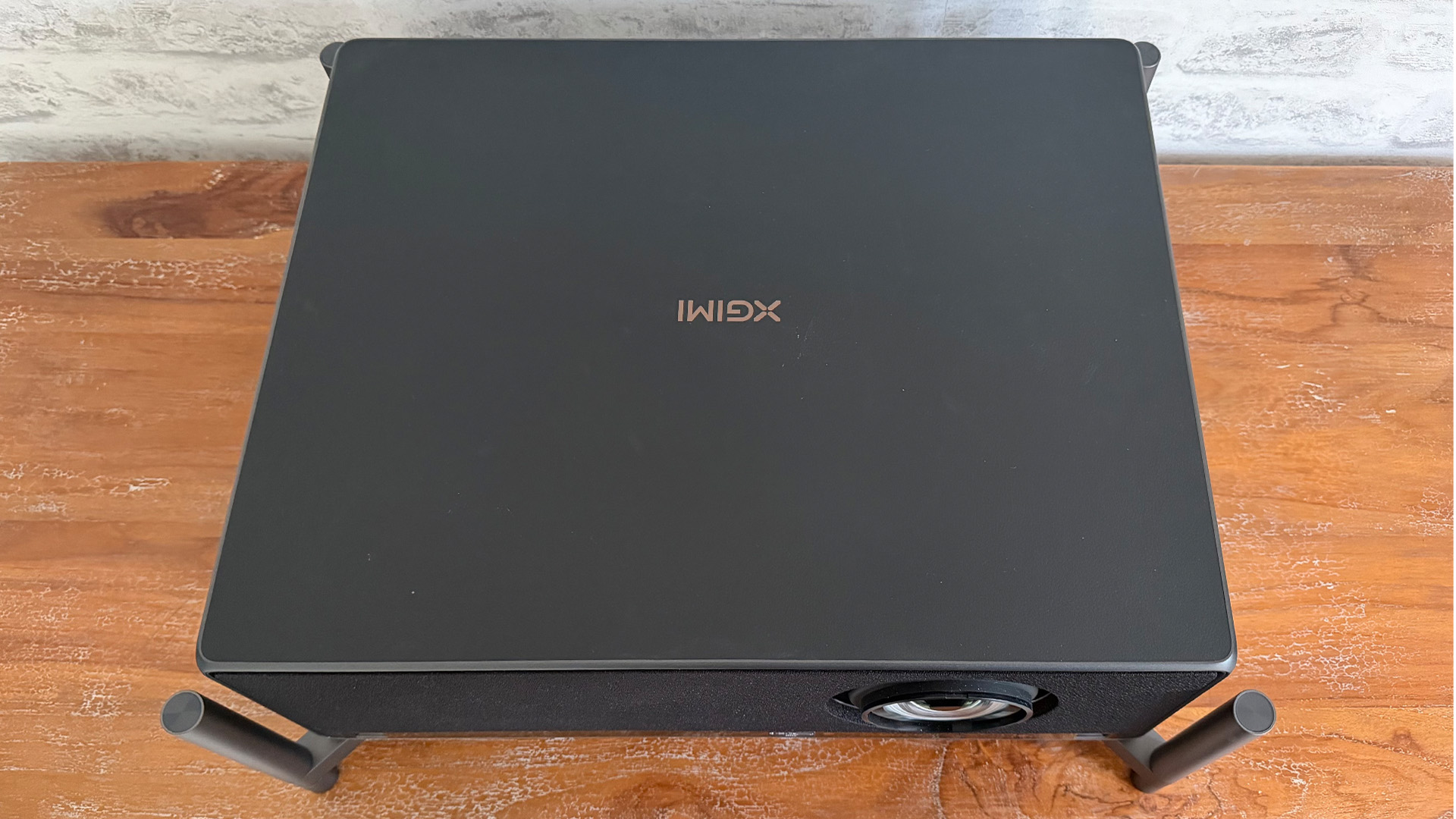

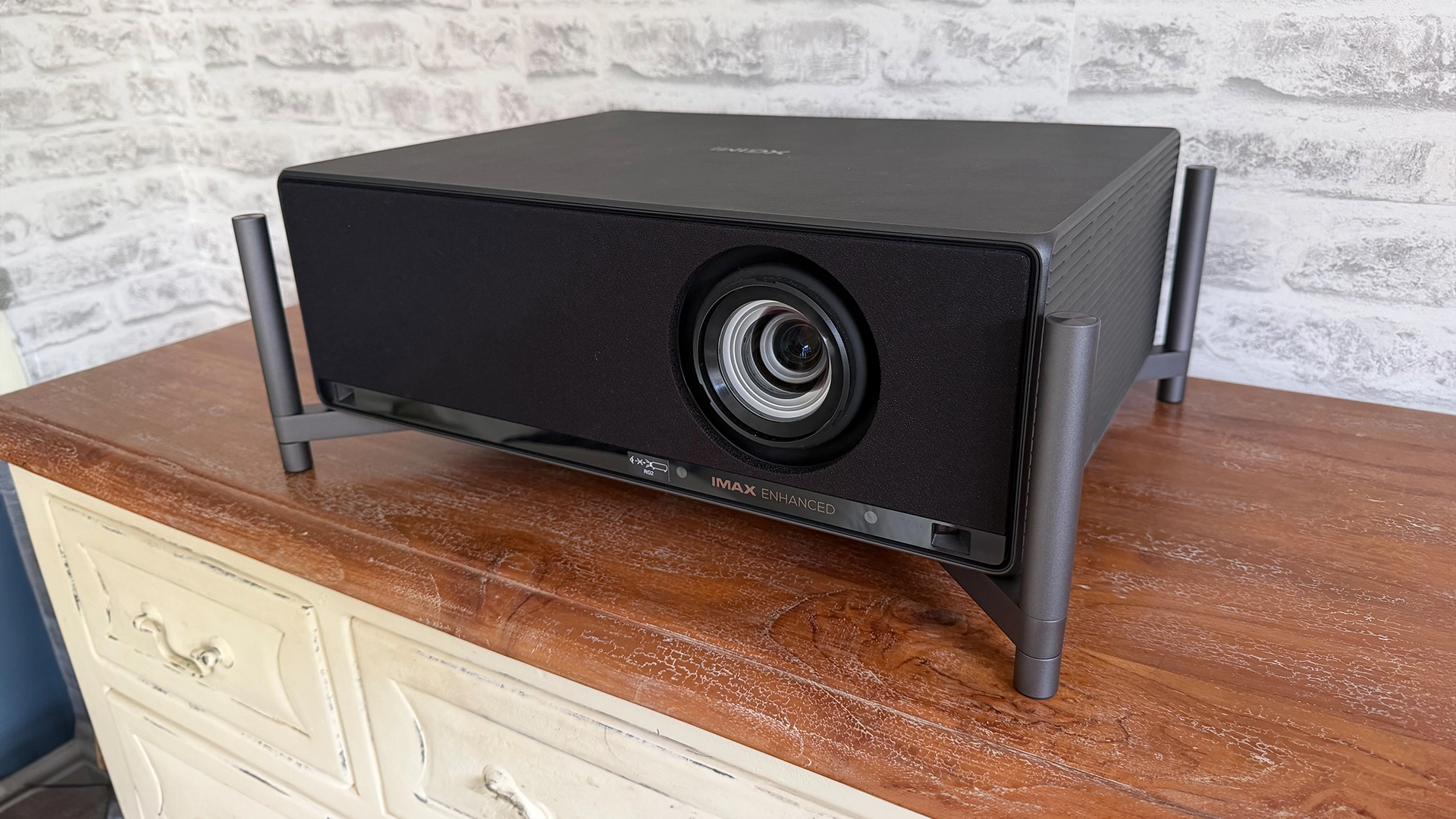

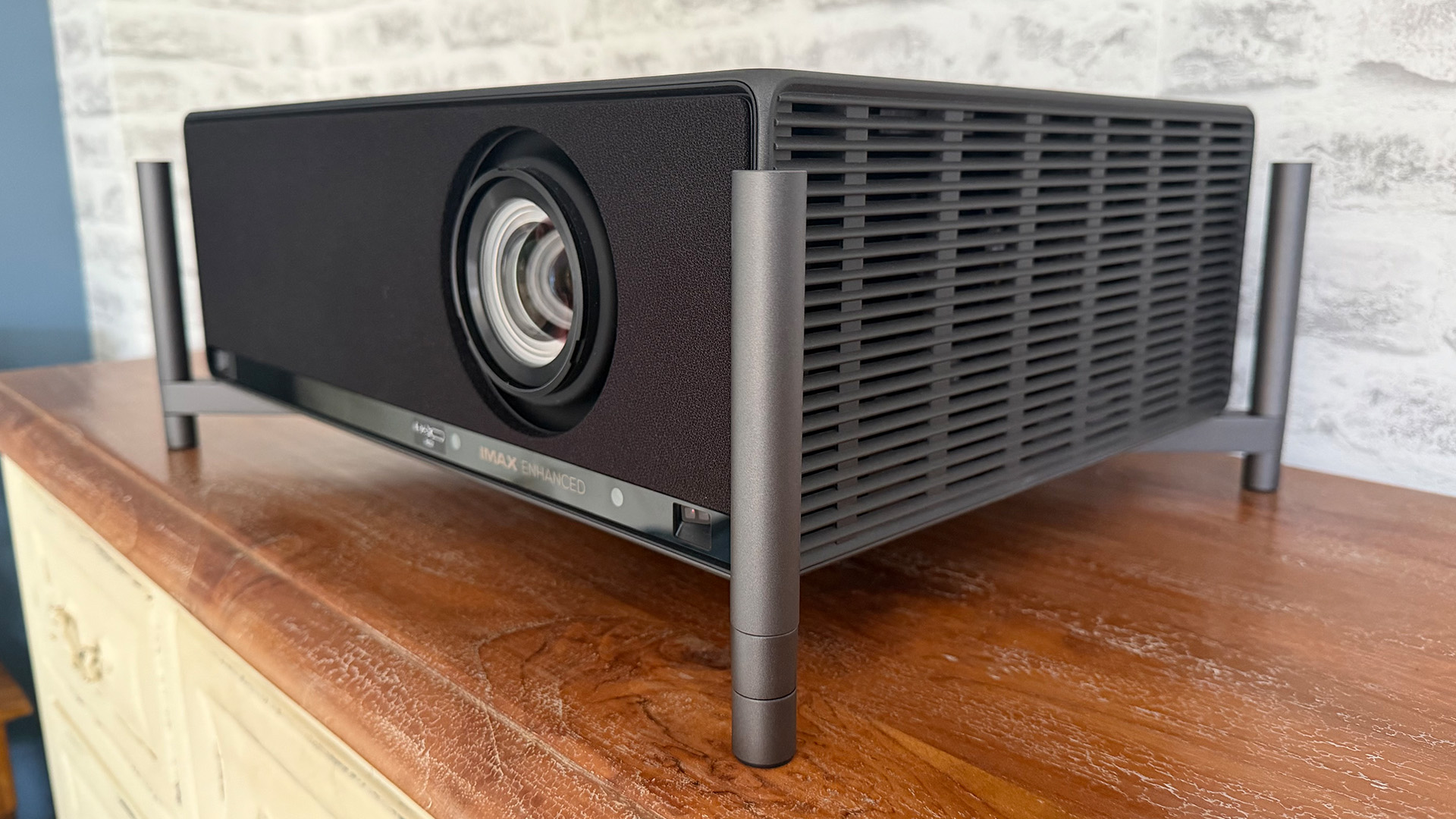

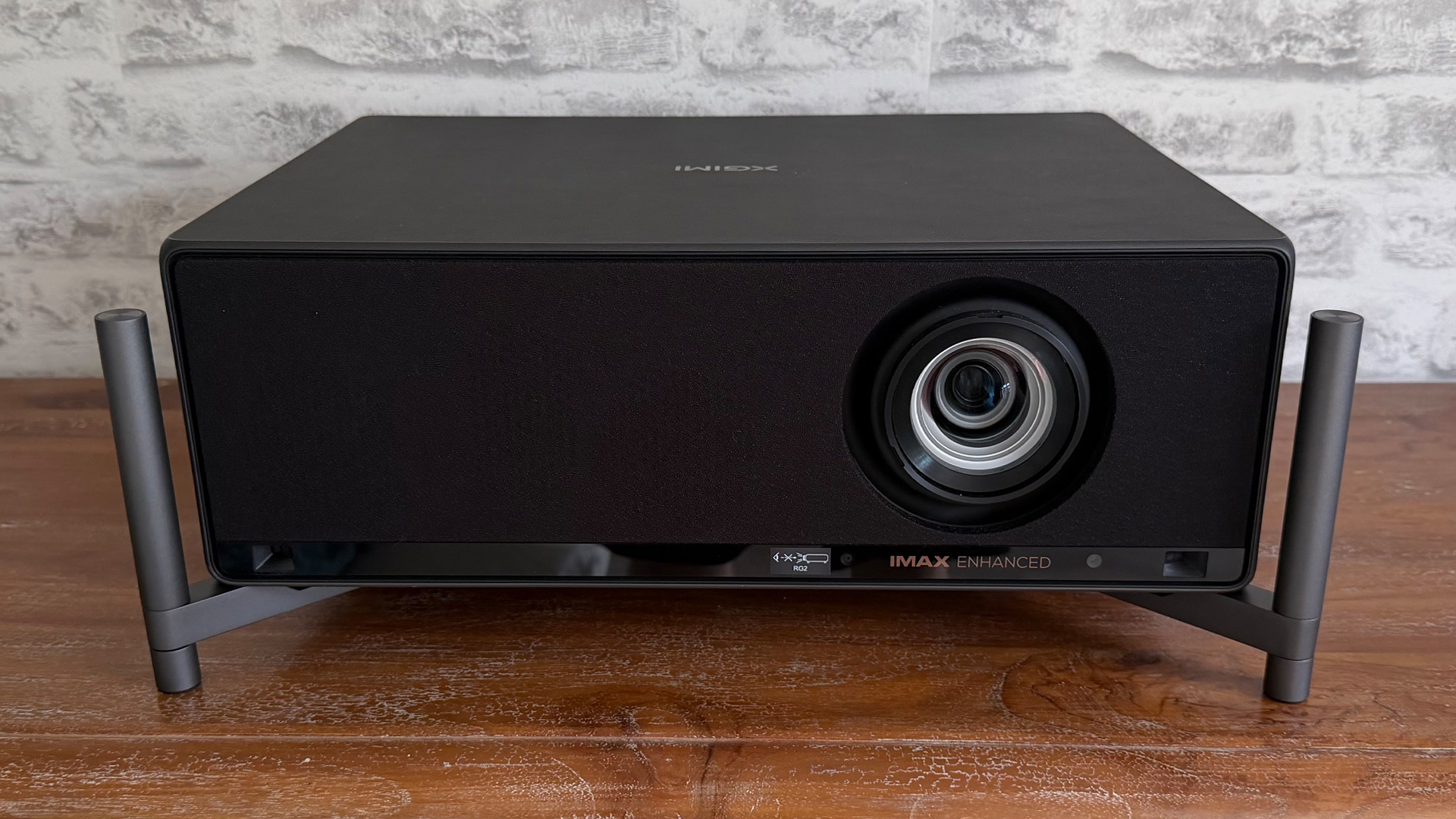

Most eye-catchingly of all, the projector ships with four elongated mounting legs that attach diagonally out from each underside corner, making the projector look like it’s sitting in some kind of cradle. We’re a bit torn on both the usefulness and aesthetic appeal of these feet, honestly, but they’re well made and certainly help the Titan stand out from the crowd.

High wall/ceiling and floor mount options (the latter of which essentially adds a long pole to the stand) are also available for an extra £350 each.

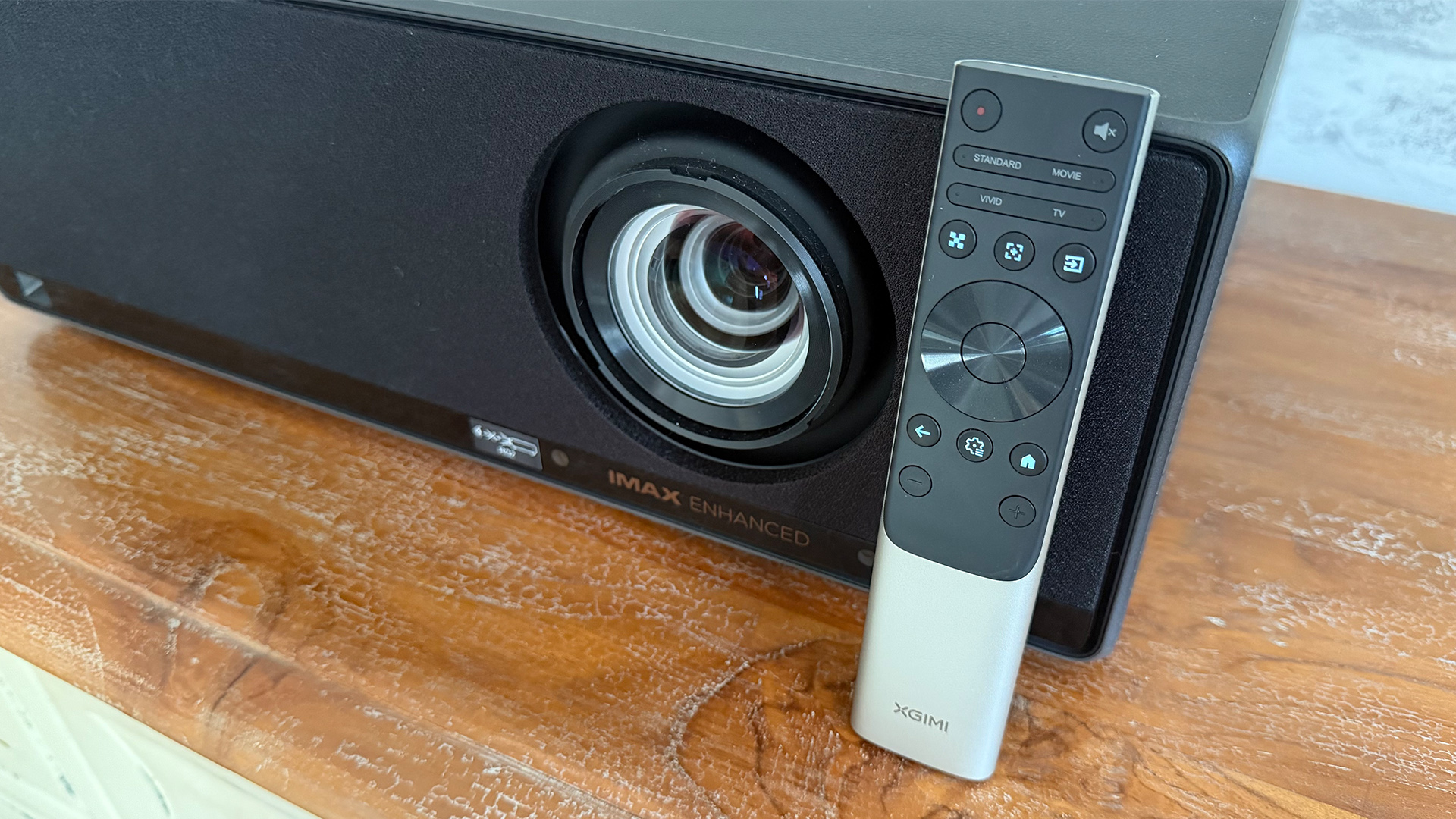

The remote control shipped with the Titan combines sleek silver metallic and smooth black plastic design elements with elegant button backlighting and a logical layout to attractive and ergonomic effect.

Features

While the Titan’s design does a good job of establishing it as a premium model, it’s the features that really set our hopes high. Particularly striking are its high claimed peak brightness of 5000 lumens, delivered by a dual laser light engine; a monster claimed dynamic contrast ratio of 5,000,000:1; claimed coverage of a seriously high 150 per cent of the DCI-P3 colour spectrum used in most of today’s HDR mastering; and support for all of the main four HDR formats, including Dolby Vision and HDR10+.

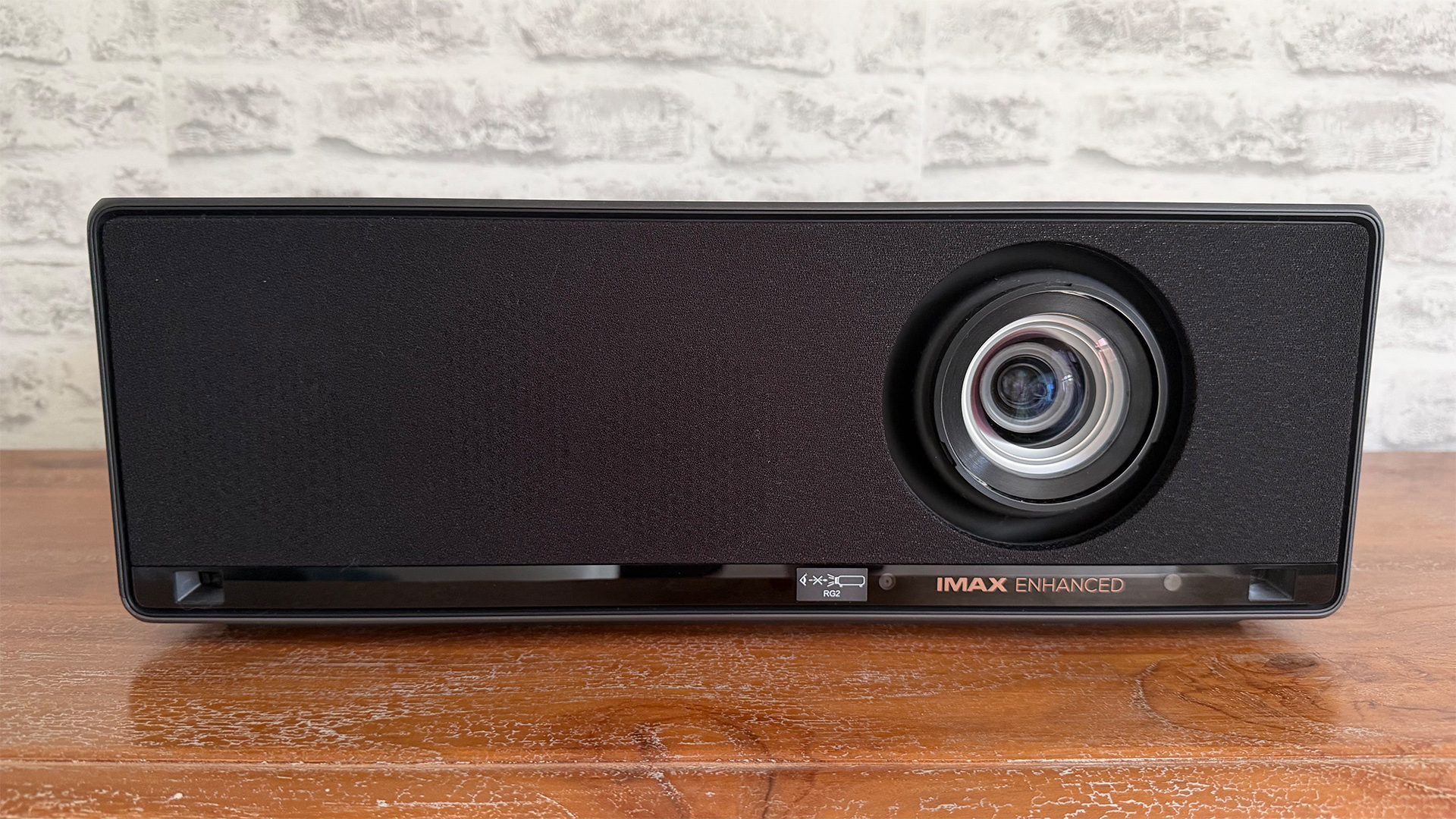

As a logo under the lens confirms, the Titan has also earned IMAX Enhanced certification, meaning its picture quality has been deemed capable of doing justice to the special IMAX Enhanced video mastering system.

The projector is also sold as 4K capable. As ever with domestic DLP projectors, this 4K resolution isn’t truly native, depending on Texas Instruments’ XPR system of pixel shifting and ‘double flashing’ to achieve a 4K effect. This 4K effect has been deemed a true 4K experience by the independent Consumer Technology Association, however, and we’ve seen many 4K DLP projectors now deliver pictures that really do appear dense and crisp enough to feel like 4K.

The Titan actually claims an extra 4K advantage over other consumer DLP projectors, too, by using a 0.78-inch imaging chip rather than the 0.47- or 0.66-inch chips commonly used in DLP projectors. This should greatly improve the light efficiency and controllability of all the tiny mirrors mounted onto the DLP DMD device, as well as enhance pixel separation, resulting in potentially more native contrast and a generally more stable, detailed and consistent image.

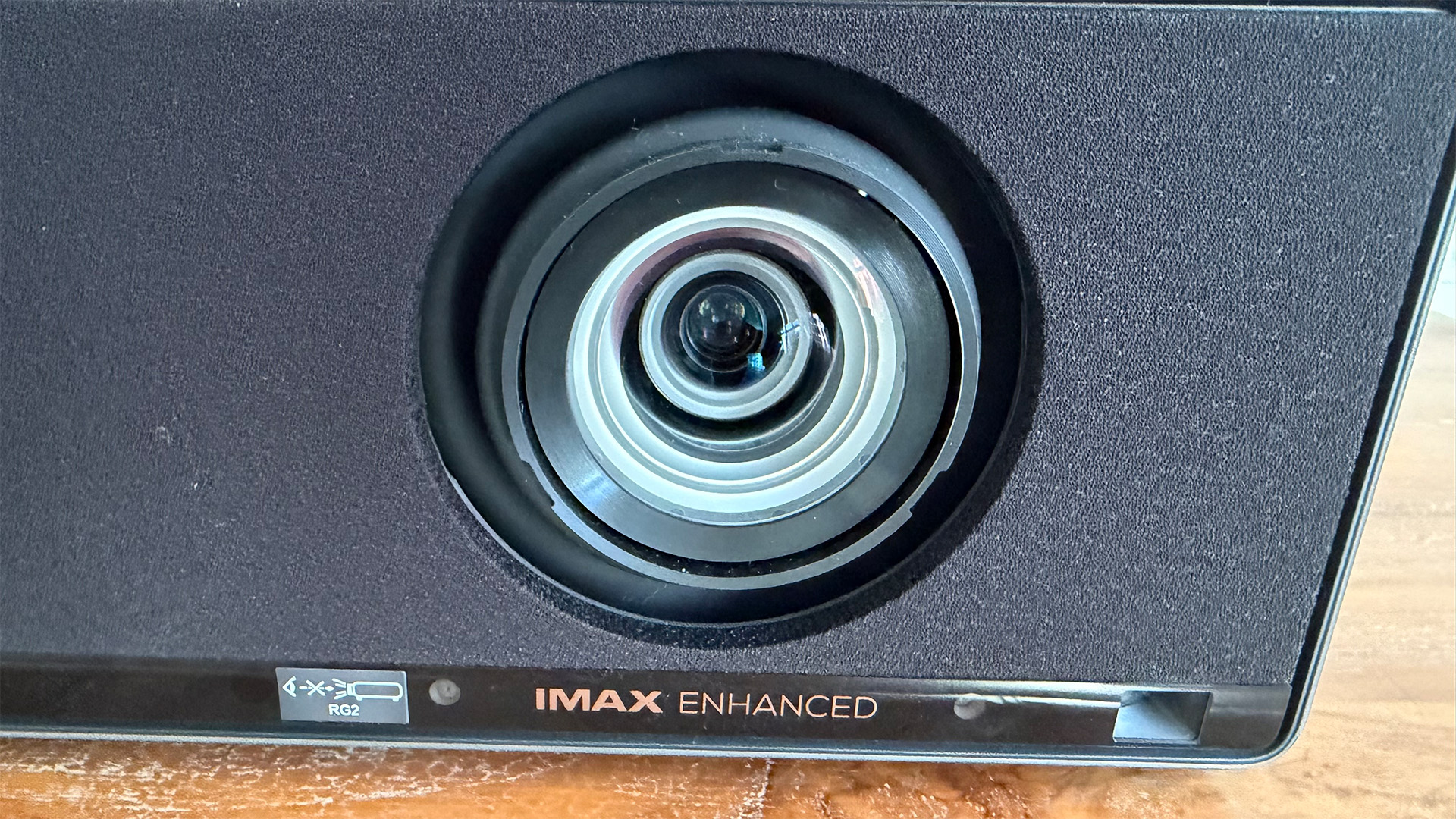

Xgimi has introduced a couple of promising new proprietary features for the Titan, too. First, its complex multi-element lens design has been specially created by Xgimi to enable more of the light the projector is capable of producing to actually arrive on your screen. Second, the Titan carries Xgimi’s first self-developed 4K-grade AI image processor, the Xgimi X1.

The Titan supports full HD 3D playback if you pair it with optional active shutter 3D glasses, while among its picture presets is a Filmmaker Mode to provide a one-button way of getting the projector to produce pictures designed to get as close as the projector can to the image standards and values typically used in the content creation world.

When it comes to gaming, our resident Xbox Series X confirms that the Titan’s HDMI ports can’t handle frame rates higher than 60Hz at 4K resolution, even with the HDMIs set to Enhanced mode. It does at least hold on to HDR in 4K/60Hz mode, though, and can be set to handle 120Hz at 1080p resolution if you activate the high frame rate feature in the projector’s dedicated Game onscreen menus. Choosing this higher frame rate seems to come at the expense of HDR, though, and there’s no support at any frame rate for VRR.

There is support for ALLM, though, where the projector can automatically switch into its best game settings when a game source is detected. This best game set-up reduces input lag to 32.3ms.

While the Titan doesn’t feature one of the sophisticated fully automated picture set-up systems that increasingly many living room projectors do, it does feature auto focus and auto keystone correction, and the motorised lens system features both more extensive and more finely tuned adjustments than most. Optical zoom is available across a 1.2-1.8x range, and the image can be shifted left, right, up or down over a +/- 100 per cent vertical range and +/- 40 per cent horizontal range.

Xgimi claims the Titan’s 5000 lumens of brightness can drive a screen as large as 250 inches, and it has an integrated 2 x 12W sound system. The projector also supports playback of DTS-HD, DTS Virtual X and Dolby Atmos in the Dolby Digital+ format.

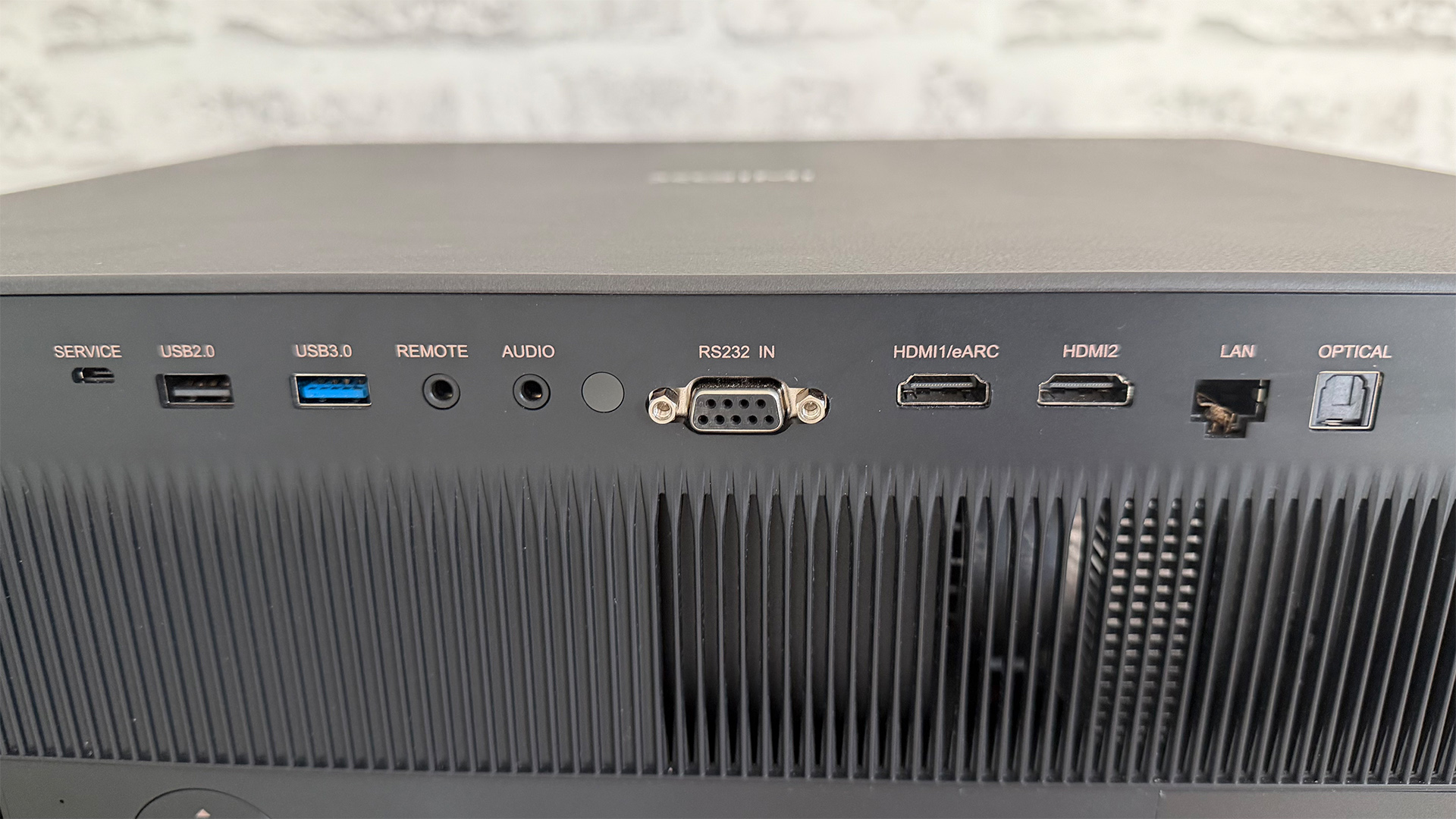

The Titan’s connections are decent for a premium projector. It might have been nice if there were more than two HDMI ports, and if those supported HDMI 2.1 bandwidths, but these are backed up by two USB ports (one USB 3.0 and one USB 2.0), analogue and optical digital audio outputs, plus Ethernet and RS-232C ports for integrating the projector into a wider home control network.

When it comes to integrated smart TV features, finally, the Titan leans towards the dedicated home theatre room projector market by not actually having any. The only thing it offers that’s remotely along those lines is a built-in media player that can handle AV files played from USB drives.

Picture quality

First impressions of the Xgimi Titan are really spectacular. With native 4K HDR content, you instantly feel the impact of both its extreme 5000 lumens of brightness and the extra detail and clarity that we assume is down to the projector’s use of the new 0.78-inch DLP DMD chip.

The brightness is particularly useful to the side of the Titan’s personality focused on living room use, helping it punch its images through even summertime levels of ambient light with enough colour saturation and contrast to leave them not just watchable but actually enjoyable.

The Titan’s colours don’t push into levels of saturation, vibrancy and volumes that some other recent premium projectors we’ve tested have achieved, but we rarely feel as if the colour on offer is struggling to reach the levels required by even the most vibrant content we feed it.

The Titan’s image really does look 4K. There’s a purity and naturalism to its reproduction of fine details and textures as well as a general sense of immediacy and real-life density to its images that’s a notch above anything we’ve seen from the vast majority of other DLP projectors.

This helps to create a strong sense of depth, and the clarity is delivered so effortlessly that the viewing experience feels incredibly natural and immersive. At least when the source content is playing to the projector’s strengths with images that are bright, colour-rich, clean and detailed.

The naturalism extends to superbly natural management of grain and appealingly natural-looking judder with 24p movies if you call in the lowest setting of the projector’s motion processing options. Perhaps because of the image’s high brightness, judder feels slightly too pronounced in its ‘native’ form with no processing applied.

The Titan adapts itself to HD SDR content very nicely, too, retaining good shading and colour balance/naturalism despite evidently being designed with HDR in mind.

The Titan also adapts its images well in many ways between its key Standard and Filmmaker Mode presets. The Standard mode is your go-to for bright rooms, but is also mostly a solid option for a dark-room film night if you prefer punchier images to the more accurate ones delivered by the Filmmaker Mode.

The Filmmaker Mode, though, while significantly dimmer, flatter and actually quite a bit softer than the Standard mode, does deliver that creative intent ‘feel’ that home cinema fans will be familiar with.

There are a trio of areas, though, where the Titan’s pictures fall short of the generally high standards it sets elsewhere.

First and worst, its black levels are underwhelming for a projector that sells itself as delivering home theatre in all room conditions. This isn’t a big problem in relatively bright rooms, but home cinema fans who like to really black out their rooms for serious movie nights will at least sometimes be distracted by the greyness that creeps into dark scenes. Especially as the greyness is actually most noticeable in the projector’s most ‘cinematic’ picture presets due to these not aggressively using the projector’s Dynamic Black Level feature.

This feature auto-adjusts the projector’s light output based on constant analysis of the source image, and it really can substantially enhance black reproduction. Unfortunately, though, the Low setting for the Dynamic Black Feature causes lots of subtle image detail to disappear into the darkness, leaving the picture looking hollow and flat, while its medium and high settings can cause the image to look a bit unstable during high contrast shots as the projector becomes a bit hyperactive with its workings.

For us, the Titan’s Dolby Vision Dark mode delivers the best out-of-the-box option for dark room viewing – though this still isn’t as perfect for black levels as we’d have hoped. Plus it relies on the projector receiving a Dolby Vision source, of course.

You could improve the black levels by using a low-gain (0.5 or so) screen, and reducing the projector’s brightness setting also helps a bit – though this obviously reduces the impact of the potent HDR effect that’s arguably the Titan’s biggest selling point.

The Titan’s DLP images also reveal a little rainbow effect during shots that contain stand-out bright objects. This issue is, to be fair, less aggressive than we might have expected with such a bright projector, but it’s definitely there – even to people like us who only consider ourselves to be moderately susceptible to seeing it (sensitivity to the rainbow effect varies from person to person).

The third picture issue is that the so-called Performance mode, where performance appears to mean driving every aspect of the picture to the outer extremes of the projector’s capabilities, is one of the weirdest and most unwatchable picture presets we’ve ever seen.

Yes, it’s bright. Arguably the brightest picture we’ve seen from any projector costing under five figures, in fact. But colours look absolutely bizarre in this mode – about as far from natural and balanced as you could imagine in your wildest AV fever dream – while the projector’s Dynamic Tone Mapping seems to lose the plot pretty much entirely, delivering picture extremes with so little thought for balance and consistency that you’d swear different elements of each frame must have been mastered at different times by different people on different mastering monitors.

The Performance mode also suddenly escalates the Titan’s running noise from practically (and brilliantly) non-existent to a level that’ll have you thinking you must have left the fan oven in the kitchen on.

Of course, you don’t have to choose the Performance mode, thankfully. And in its key Standard, Dolby Vision Dark, IMAX Enhanced and Filmmaker Mode modes, the Titan is capable of delivering generally very enjoyable pictures – especially if, contrary to typical ‘home theatre projector’ practice, you leave a little light in your room.

Sound quality

The Titan’s built-in speakers give good TV sound systems a run for their money. The projector can go as loud as a good-sounding TV, for instance, without starting to sound strained. The speakers project their sound well, too, including towards the distant screen, substantially reducing that eternal projector audio problem where the sound doesn’t seem to be attached to the pictures.

The midrange is rich and full, and the speakers are sensitive enough even under quite heavy pressure to retain great levels of detail and clarity. Even when they’re dealing with shrill treble or heavy beats. The midrange is also able to expand very effectively as escalating action or horror scenes grow in density, layering and volume, avoiding that common integrated TV/projector audio system issue of the sound falling away just when it should be entering full-throated mode.

However, while bass is typically convincing, Hollywood’s deepest bass moments can catch the Titan out a little, with prolonged rumbles sometimes sounding rather coarse against the quite hi-fi feel of the rest of the sound. A faint crackling effect can creep into the most extreme bass sounds, too.

More broadly, while the Titan sounds good overall by projector standards, its audio is a long way from a suitable match for the epic scale of the pictures it produces. A dedicated home cinema system really is the only way to go here.

Verdict

The Titan has enough swagger in both its hardware and software to compellingly back up Xgimi’s latest bid to be taken seriously as a potential home theatre rather than simply ‘living room’ projector brand. Much of the DNA required to get home cinephile hearts thumping is present and correct, and its pictures can look incredible at times.

In the end, though, the Titan perhaps pushes its ‘True Home Cinema anywhere’ bid a bit too far, leaning slightly too hard into the sort of picture abilities required for the ‘storefront displays or digital signage’ applications Xgimi also claims the Titan can support, rather than dedicating itself hook, line and sinker to the home cinema world.

SCORES

• Picture 4
• Sound 4
• Features 4
